Custom Width Double-Sided Ribbon Transfer Printing Machine for Wide Webbing and Elastic Bands ZS-AC
Home » Products » Ribbon Printing Machines » Custom Width Double-Sided Ribbon Transfer Printing Machine for Wide Webbing and Elastic Bands ZS-AC
ZS-AC

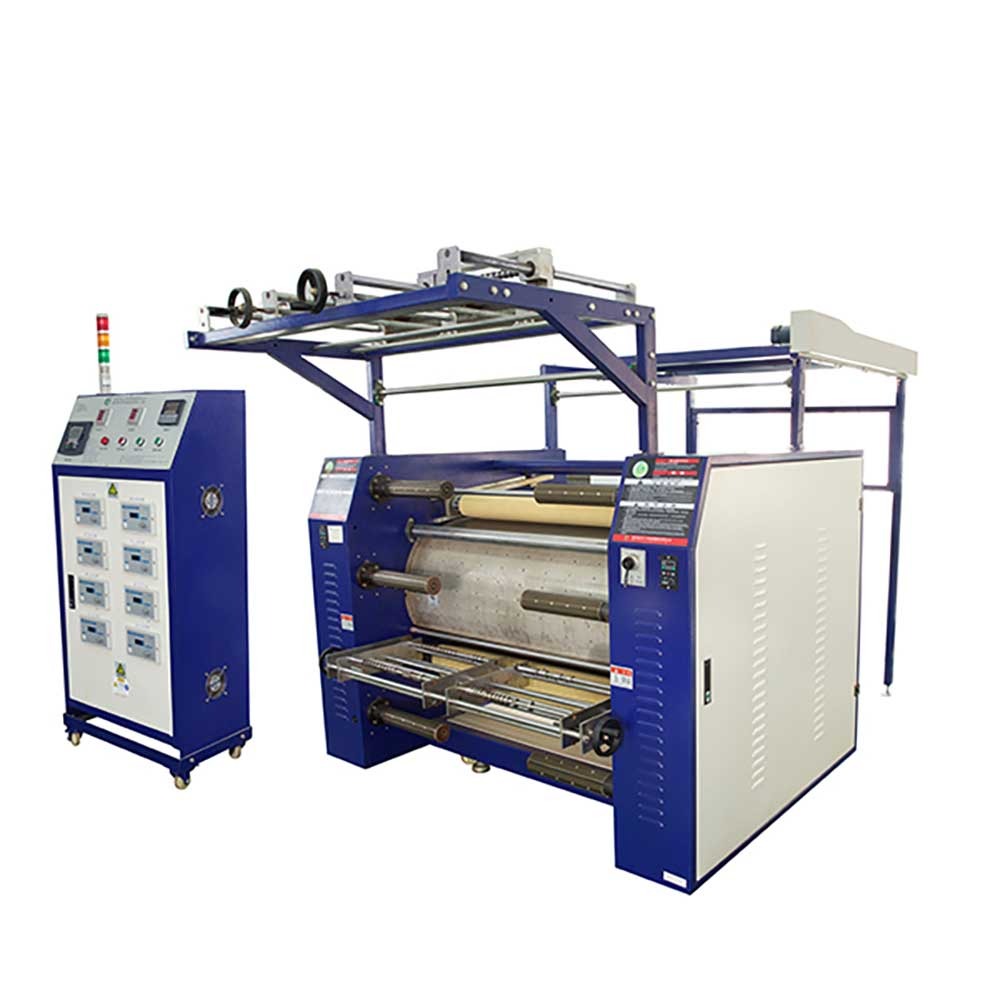

Custom Width Double-Sided Ribbon Transfer Printing Machine for Wide Webbing and Elastic Bands ZS-AC
A customizable ribbon transfer printing machine for small cut pieces, ribbons, elastic bands, shoelaces, lanyards, pet straps, and zippers. It is designed for accurate double-sided registration.
- Drum diameter: 610 / 800 mm
- Effective width: 600 / 1200 mm
- Power: 21 / 28 kW
- Dual-sided infrared positioning
Request a quote
Sales hotline+86 137 1313 7075
Product parameters
| Drum diameter | Effective width | Power | Voltage | Temperature | Speed | Installation size | Weight |
|---|---|---|---|---|---|---|---|
| 610 | 600 | 21 kW | 110 / 220 / 380 V | 0–400 °C | 160–250 m/h | 3500 × 1600 × 2000 mm | 1800 kg |
| 610 | 1200 | 21 kW | 110 / 220 / 380 V | 0–400 °C | 160–250 m/h | 4300 × 1600 × 2000 mm | 2200 kg |
| 800 | 600 | 28 kW | 110 / 220 / 380 V | 0–400 °C | 280–450 m/h | 4200 × 1980 × 2350 mm | 2100 kg |
| 800 | 1200 | 28 kW | 110 / 220 / 380 V | 0–400 °C | 280–450 m/h | 4600 × 2500 × 2600 mm | 3200 kg |
Customization: The configuration can be customized for ribbon width, voltage, and production process.
Key advantages
High-density blanketA thick high-density blanket provides reliable transfer results and a long service life.
Dual-sided positioning worktableInfrared positioning supports accurate double-sided ribbon printing with minimal registration error.
Aluminum air shaftsEight aluminum air shafts make paper handling, positioning, and winding convenient and accurate.
Double-layer drumItalian full-oil technology keeps temperature variation within ±1 °C for uniform, color-consistent transfer.
Magnetic powder windingAdjustable tension and speed provide stable paper feeding and winding.
Applications
Suitable for small cut pieces, ribbons, elastic bands, shoelaces, lanyards, pet straps, and zippers.
Color ribbonsDouble-sided printing for decorative ribbons
LanyardsPrinted lanyards and credential straps
Elastic bandsDouble-sided printing for elastic narrow fabrics
Narrow webbingShoelaces, zipper tapes, and narrow webbingOperating components
Control panelDual-sided positioning worktableAluminum air shaftsMagnetic powder winding system
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
