High-Speed CCD Vision Fabric Laser Cutting Machine for High-Volume Textile Production DF Series

Home » Products » Laser Cutting Machines » High-Speed CCD Vision Fabric Laser Cutting Machine for High-Volume Textile Production DF Series

High-speed DF series

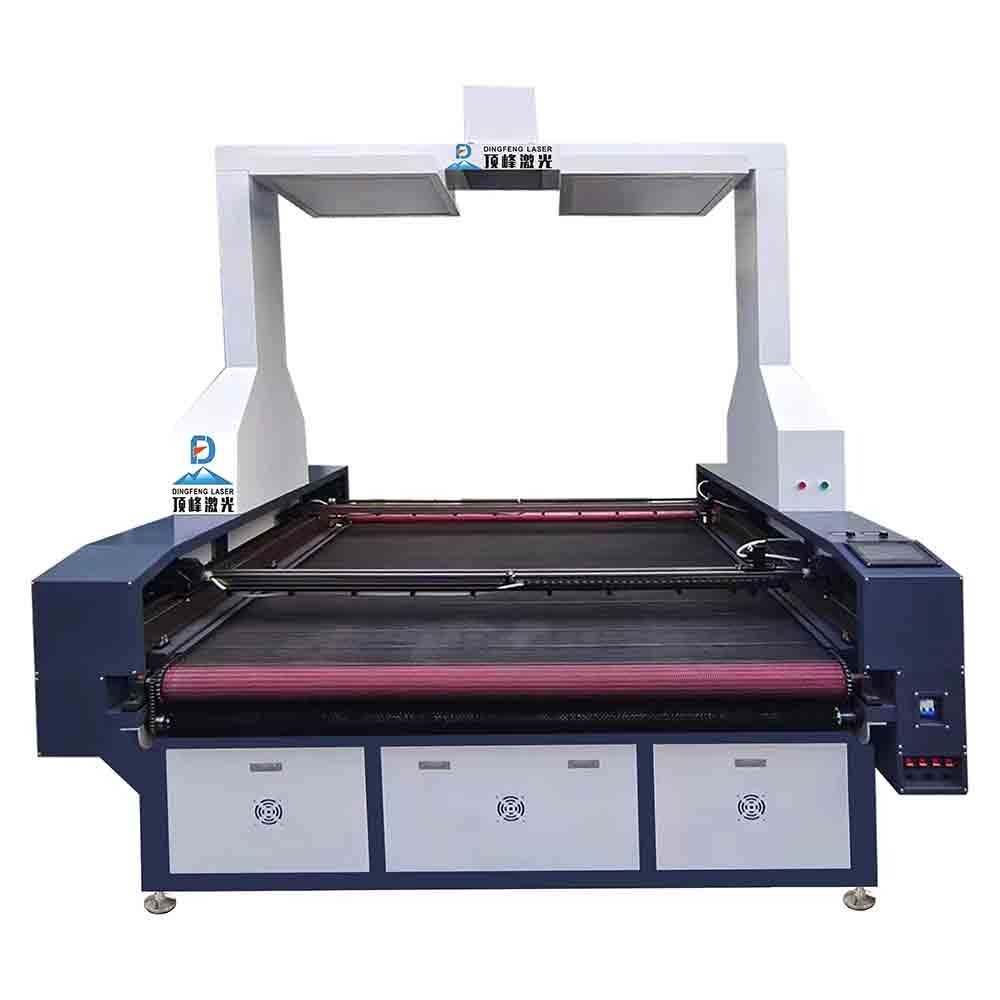

High-Speed CCD Vision Fabric Laser Cutting Machine for High-Volume Textile Production DF Series

A high-speed panoramic fabric laser cutting machine with industrial camera vision, a CO2 water-cooled laser, and servo-driven motion for high-throughput textile cutting and engraving.

Working area: 1800 × 2000 to 2000 × 3000 mm
Laser power: 180–300 W
Cutting/engraving speed: 0–2000 / 0–2000
Repeat accuracy: ±0.05 mm

Request a quote

Sales hotline+86 137 1313 7075

Model configurations

Model	Working area (mm)	Laser power	Total power	Cutting/engraving speed
DF-1820	1800 × 2000	180–300 W	≤5000 W	0–2000 / 0–2000
DF-1825	1800 × 2500	180–300 W	≤5000 W	0–2000 / 0–2000
DF-1830	1800 × 3000	180–300 W	≤5000 W	0–2000 / 0–2000
DF-1920	1900 × 2000	180–300 W	≤5000 W	0–2000 / 0–2000
DF-1925	1900 × 2500	180–300 W	≤5000 W	0–2000 / 0–2000
DF-1930	1900 × 3000	180–300 W	≤5000 W	0–2000 / 0–2000
DF-2022	2000 × 2200	180–300 W	≤5000 W	0–2000 / 0–2000
DF-2025	2000 × 2500	180–300 W	≤5000 W	0–2000 / 0–2000
DF-2030	2000 × 3000	180–300 W	≤5000 W	0–2000 / 0–2000

Customization: Standard configurations are shown above. Working area and laser power can be customized.

Technical specifications

Camera	Industrial camera
Cooling	Water cooling
Laser type	CO2
Operating temperature	0–45 °C
Operating humidity	5%-95%
Repeat positioning accuracy	±0.05 mm
Transmission	Stepper / servo motor
Voltage	220 V / 110 V, 50/60 Hz
Supported formats	DWD, DXF, JPG, AI, TIFF, PLT, CDR, BMP, GIF
File transfer	USB cable, USB drive, network

Key functions

Intelligent visionThe industrial camera vision system identifies fabric contours and pattern positions.

Automatic recognitionThe system recognizes cutting patterns automatically and reduces manual alignment time.

Ultra-high precisionRepeat positioning accuracy of ±0.05 mm supports fine contour cutting.

High-speed cuttingCutting and engraving speeds reach 0–2000 / 0–2000 for batch production.

Contour cuttingSupports shaped patterns and contour cutting for customized production.

Product details

Industrial cameraThe industrial camera captures images for vision recognition.

Water-cooled laser headThe CO2 laser head is water-cooled for continuous cutting and engraving.

Rack-and-pinion driveThe rack-and-pinion drive supports stable high-speed motion.

Servo motorServo motors provide fast response and accurate motion control.

Applications

Suitable for sportswear, swimwear, printed apparel, home textiles, footwear, lace, handbags, gloves, luggage, car cushions, leather goods, plush toys, and paper products.
