DF-PT series

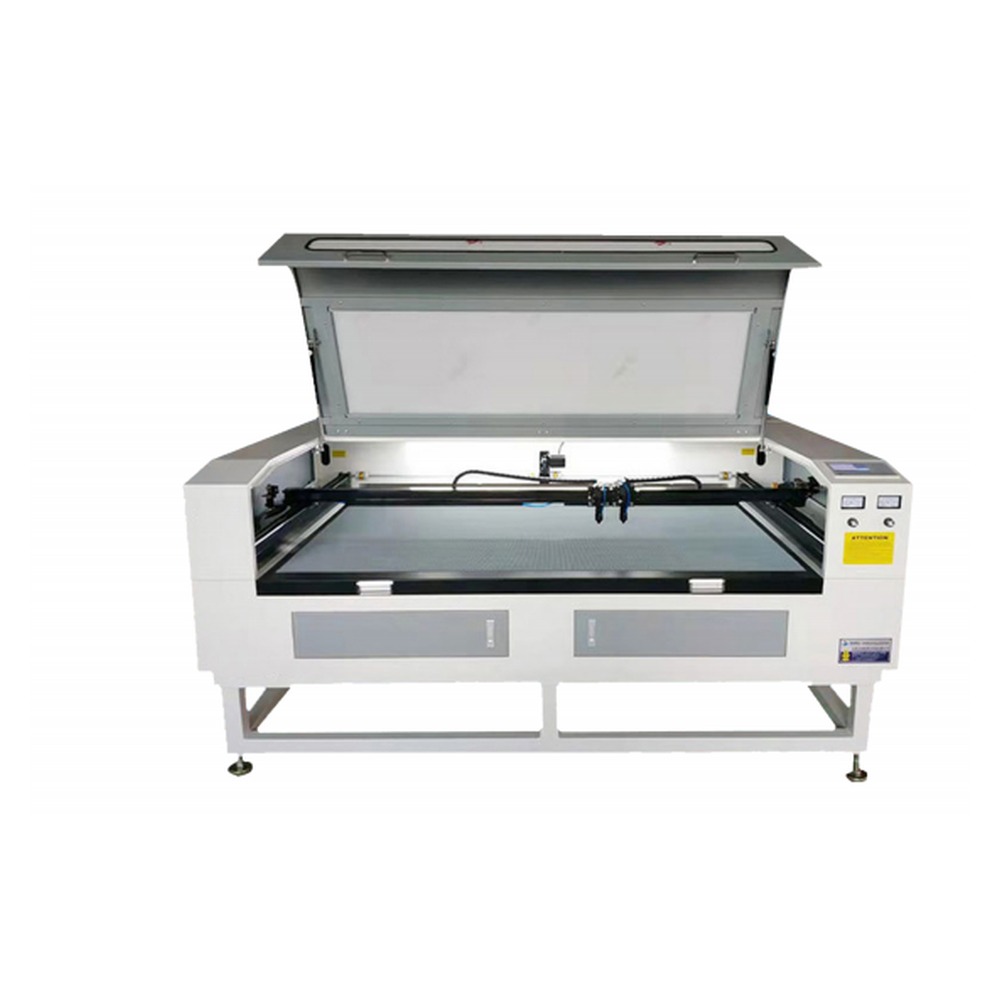

CCD Printed Fabric Laser Cutting Machine for Textile Contour Cutting and Automatic Feeding DF-PT Series

A fabric laser cutting machine for apparel, footwear, home textiles, handbags, luggage, leather, toys, acrylic, wood, and craft paper. It combines a CO2 water-cooled laser with Canon industrial camera vision.

Working area: 600 × 400 to 1900 × 1000 mm
Laser power: 80–150 W
Repeat accuracy: ±0.05 mm
CO2 laser with water cooling

Request a quote

Sales hotline+86 137 1313 7075

Model configurations

Model	Working area (mm)	Laser power	Total power	Cutting/engraving speed
DF-PT6040	600 × 400	80 W	≤3500 W	0–600 / 0–1500
DF-PT9060	900 × 600	80–150 W	≤3500 W	0–600 / 0–1500
DF-PT1080	1000 × 800	80–150 W	≤3500 W	0–600 / 0–1500
DF-PT1310	1300 × 1000	80–150 W	≤3500 W	0–600 / 0–1500
DF-PT1390	1300 × 900	80–150 W	≤3500 W	0–600 / 0–1500
DF-PT1490	1400 × 900	80–150 W	≤3500 W	0–600 / 0–1500
DF-PT1610	1600 × 1000	80–150 W	≤3500 W	0–600 / 0–1500
DF-PT1810	1800 × 1000	80–150 W	≤6000 W	0–600 / 0–1500
DF-PT1910	1900 × 1000	130–150 W	≤6000 W	0–600 / 0–1500

Customization: Non-standard sizes can be customized. Working area, laser power, and machine configuration are selectable.

Technical specifications

Camera	Canon
Cooling	Water cooling
Laser type	CO2
Operating temperature	0–45 °C
Operating humidity	5%-95%
Repeat positioning accuracy	±0.05 mm
Transmission	Stepper / servo motor
Voltage	220 V / 110 V, 50/60 Hz
Supported formats	DWD, DXF, JPG, AI, TIFF, PLT, CDR, BMP, GIF
File transfer	USB cable, USB drive, network

Key functions

Stable outputThe laser output is stable for continuous cutting and engraving.

Long service lifeKey components are designed for extended production use.

Imported control chipThe imported control chip improves response and stability.

Aviation-grade aluminum guide railThe lightweight aluminum guide rail supports smooth, high-speed motion.

Servo motorServo motor drive provides fast response and accurate positioning.

Applications

Widely used for cutting apparel, footwear, home textiles, handbags, luggage, car cushions, leather, and toys, as well as engraving acrylic, stone, decorative products, bamboo, wood, craft paper, cartons, and cigarette boxes.
