Automatic Rhinestone Brushing Machine ZS-JF
ZS-JFAutomatic Rhinestone Brushing Machine
Automatic Rhinestone Brushing Machine
ZS-JF
An automatic rhinestone brushing machine for shoes, underwear, children's clothing, T-shirts, leather goods, handbags, hair accessories, hats, and other decorated products. It is controlled by a PLC touchscreen and can be operated by staff after basic training.
- Working area: 1000 × 600 to 1900 × 900 mm
- PLC touchscreen control
- Output: 7–12 sheets per minute
- Total power: 2.5 / 4.5 kW
Request a quote
Sales hotline+86 137 1313 7075
Model configurations
| Parameter | 1000 × 600 mm | 1200 × 800 mm | 1300 × 600 mm | 1900 × 900 mm |
|---|---|---|---|---|
| Control system | PLC touchscreen | PLC touchscreen | PLC touchscreen | PLC touchscreen |
| Control mode | Foot switch | Foot switch | Foot switch | Foot switch |
| Lifting screw | High-precision screw | High-precision screw | High-precision screw | High-precision screw |
| Lifting drive | Stepper motor | Stepper motor | Stepper motor | Stepper motor |
| Motor power | 120 W | 120 W | 120 W | 750 W |
| Inverter | 750 W | 750 W | 750 W | 750 W |
| Suction motor | 1800 W | 1800 W | 1800 W | 3600 W |
| Voltage | AC 220 V / 50 Hz | AC 220 V / 50 Hz | AC 220 V / 50 Hz | AC 220 V / 50 Hz |
| Total power | 2500 W | 2500 W | 2500 W | 4500 W |
| Machine size | 1220 × 900 × 850 mm | 1420 × 1100 × 850 mm | 1520 × 900 × 850 mm | 1330 × 2020 × 960 mm |
| Packing size | 1320 × 1030 × 950 mm | 1520 × 1230 × 950 mm | 1620 × 1030 × 950 mm | 1390 × 2080 × 1085 mm |
| Weight | ≤180–200 kg | ≤210 kg | ≤215 kg | ≤323 kg |
Customization: Standard configurations are shown above. Rhinestone placement area, voltage, and machine configuration can be customized.
Key advantages

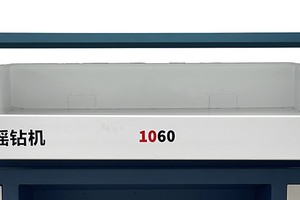

Fast rhinestone brushingThe machine processes 7–12 sheets per minute, several times faster than manual operation.

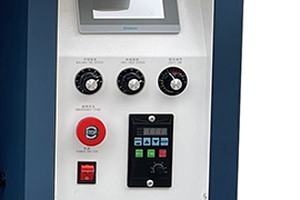

Easy to operateOrdinary staff can operate the machine after basic training, reducing dependence on experienced workers.

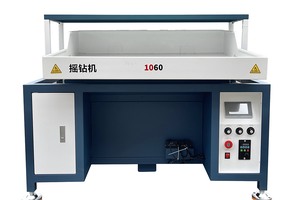

Single or multiple machine workflowThe machine automatically brushes the rhinestone sheet, followed by manual sticker application. It can run alone or in a multi-machine production loop.
Product details

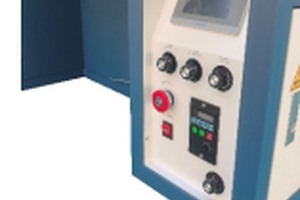

Operation panelPLC touchscreen and operating buttons are arranged on the control panel for clear parameter setup.

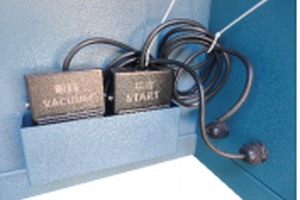

Foot switchFoot-operated control leaves both hands free for rhinestone and sticker handling.

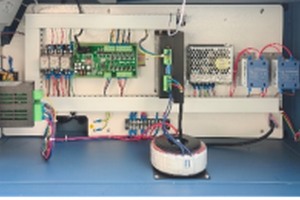

Electrical cabinetThe electrical control system is housed in a dedicated cabinet for convenient maintenance.

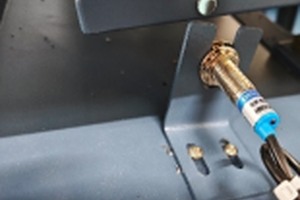

Proximity switchThe proximity switch detects position and supports automatic machine operation.

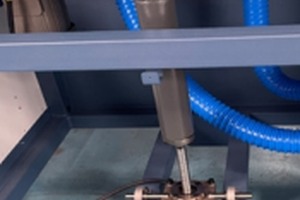

Lifting screwA high-precision screw and stepper drive provide stable lifting control.

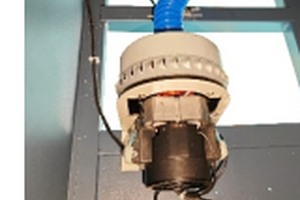

Suction motorThe suction motor works with the table surface during rhinestone brushing and pickup.
Suitable rhinestone types
Suitable for flat-bottom, square, rectangular, oval, triangular, and pointed-back rhinestones.

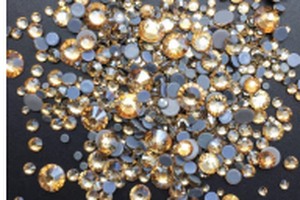

Flat-bottom rhinestonesRhinestone brushing for flat-back stones

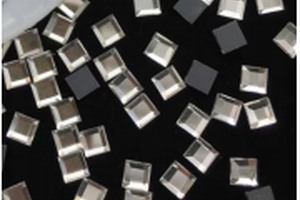

Square rhinestonesSquare rhinestone placement

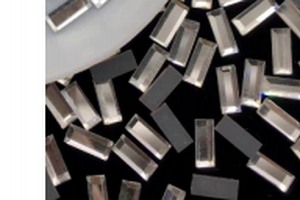

Rectangular rhinestonesRectangular rhinestone placement

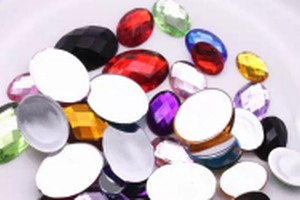

Oval rhinestonesOval and multicolor rhinestones

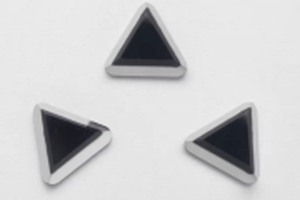

Triangular rhinestonesTriangular rhinestone placement

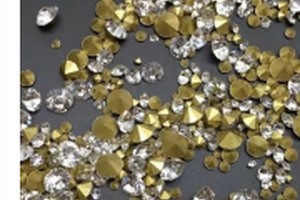

Pointed-back rhinestonesPointed-back and shaped rhinestonesApplications
ShoesUnderwearChildren's clothingT-shirtsLeather goodsHandbagsHair accessoriesHats
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
