Automatic Edge Alignment Fabric Inspection Machine
Fabric inspection
A multifunction fabric inspection machine with infrared automatic edge detection. It keeps fabric edges aligned and allows forward and reverse winding for re-inspection.
- Infrared automatic edge alignment
- Maximum unwind diameter: 35 cm
- Automatic reset and stop
- Machine size: 2400 × 435 × 1190 mm
Request a quote
Sales hotline+86 137 1313 7075
Product parameters
| Edge alignment | Infrared automatic edge detection |
|---|---|
| Maximum unwind diameter | 350 mm (35 cm) |
| Machine size | 2400 × 435 × 1190 mm |
| Completion action | Automatic reset and stop |
| Winding direction | Forward and reverse for re-inspection |
Customization: Standard specifications are shown above. The machine can be configured for the fabric roll and inspection process.
Key advantages

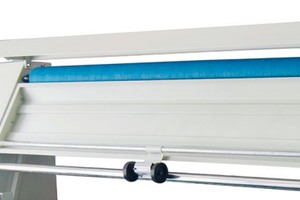

Infrared automatic edge alignmentThe infrared edge detector keeps the fabric edge neat during winding.

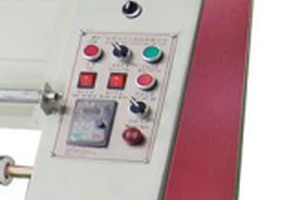

Automatic reset and stopThe machine resets and stops automatically after inspection is complete.

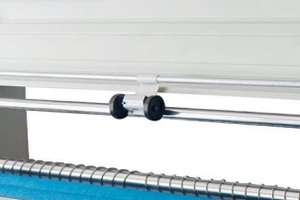

Forward and reverse windingThe winding direction can be reversed for re-inspection and rewinding.

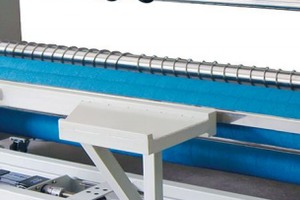

Inspection lightingA light-transmitting inspection surface and upper and lower lights help reveal fabric defects.

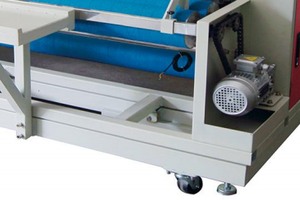

35 cm unwind capacitySupports fabric rolls up to 35 cm in diameter on a stable frame.
Operating components
Infrared edge detectorControl panelUpper and lower inspection lightsWinding rollerSpeed-reduction motor
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
