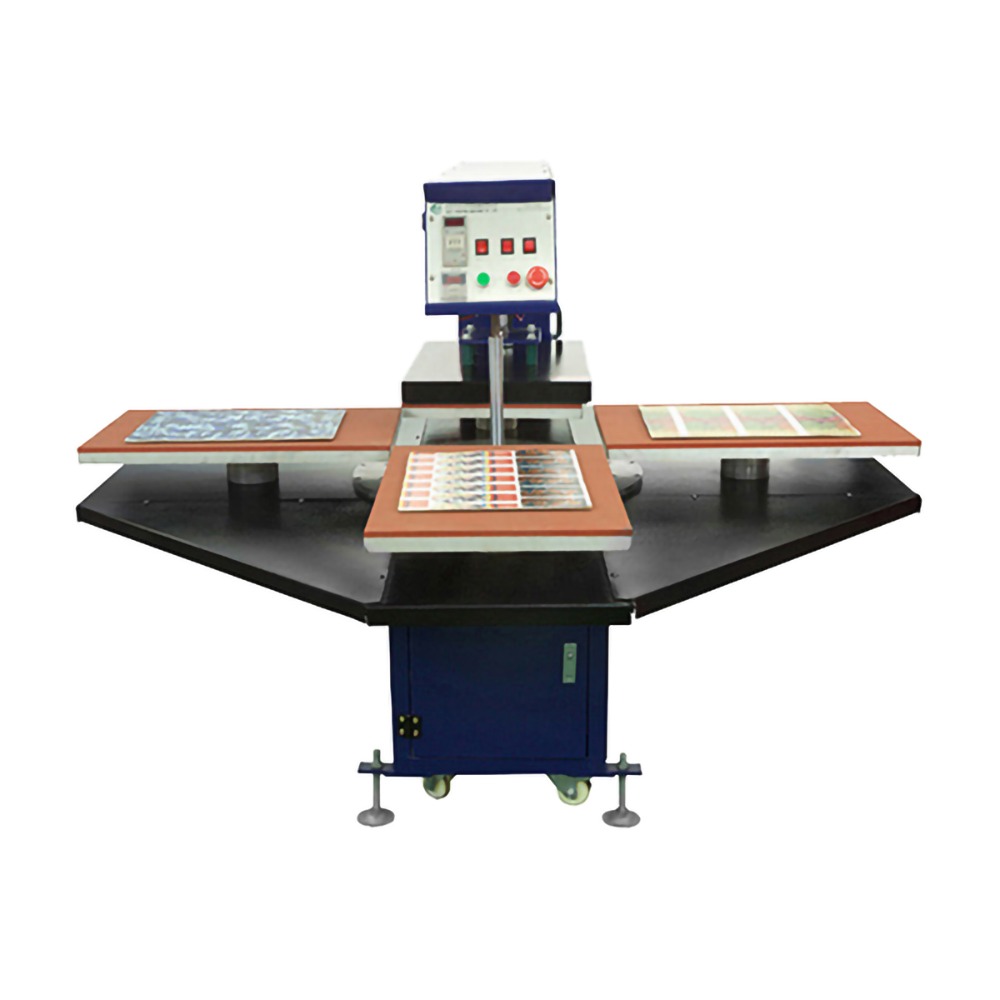

Automatic Four Station T-Shirt Heat Press Machine for High-Output Apparel Printing ZS-DF
Home » Products » Heat Press Machines » Automatic Four Station T-Shirt Heat Press Machine for High-Output Apparel Printing ZS-DF
ZS-DF
Automatic Four Station T-Shirt Heat Press Machine for High-Output Apparel Printing ZS-DF
A fully automatic four-station heat press with a rotary worktable for continuous batch production. Four stations alternate to reduce loading and unloading downtime.
- Fully automatic four-station rotary structure
- Working area: 38 × 38 to 60 × 80 cm
- Temperature: 0–399 °C
- Power: 2.8–3.5 kW
Request a quote
Sales hotline+86 137 1313 7075
Model configurations
| Parameter | 38 × 38 cm | 40 × 60 cm | 60 × 80 cm |
|---|---|---|---|
| Voltage | 220 / 380 V | 220 / 380 V | 220 / 380 V |
| Power | 2.8 kW | 3.0 kW | 3.5 kW |
| Temperature | 0–399 °C | 0–399 °C | 0–399 °C |
| Timer | 0–999 s | 0–999 s | 0–999 s |
| Working pressure | 0–8 kg/cm2 | 0–8 kg/cm2 | 0–8 kg/cm2 |
| Machine size | 1800 × 1400 × 1200 mm | 2050 × 1600 × 1400 mm | 2250 × 1800 × 1600 mm |
| Weight | 180 kg | 195 kg | 210 kg |
Customization: Standard configurations are shown above. The machine can be customized for different platen sizes and voltages.
Key advantages
Fully automatic four-station structureFour rotating stations support continuous production.
Digital temperature and timerTemperature is adjustable from 0–399 °C and the timer from 0–999 seconds.
Pneumatic pressing headA pneumatic head applies pressure to the heated platen.
Multiple station sizesThree working areas are available for apparel and sheet materials.
Operating components
Control panelPneumatic pressing headFour-station rotary tableEmergency stop
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
