Pneumatic Slide-Up Dual Station T-Shirt Heat Press Machine for High-Output Garment Printing ZS-QT
Home » Products » Heat Press Machines » Pneumatic Slide-Up Dual Station T-Shirt Heat Press Machine for High-Output Garment Printing ZS-QT
ZS-QT

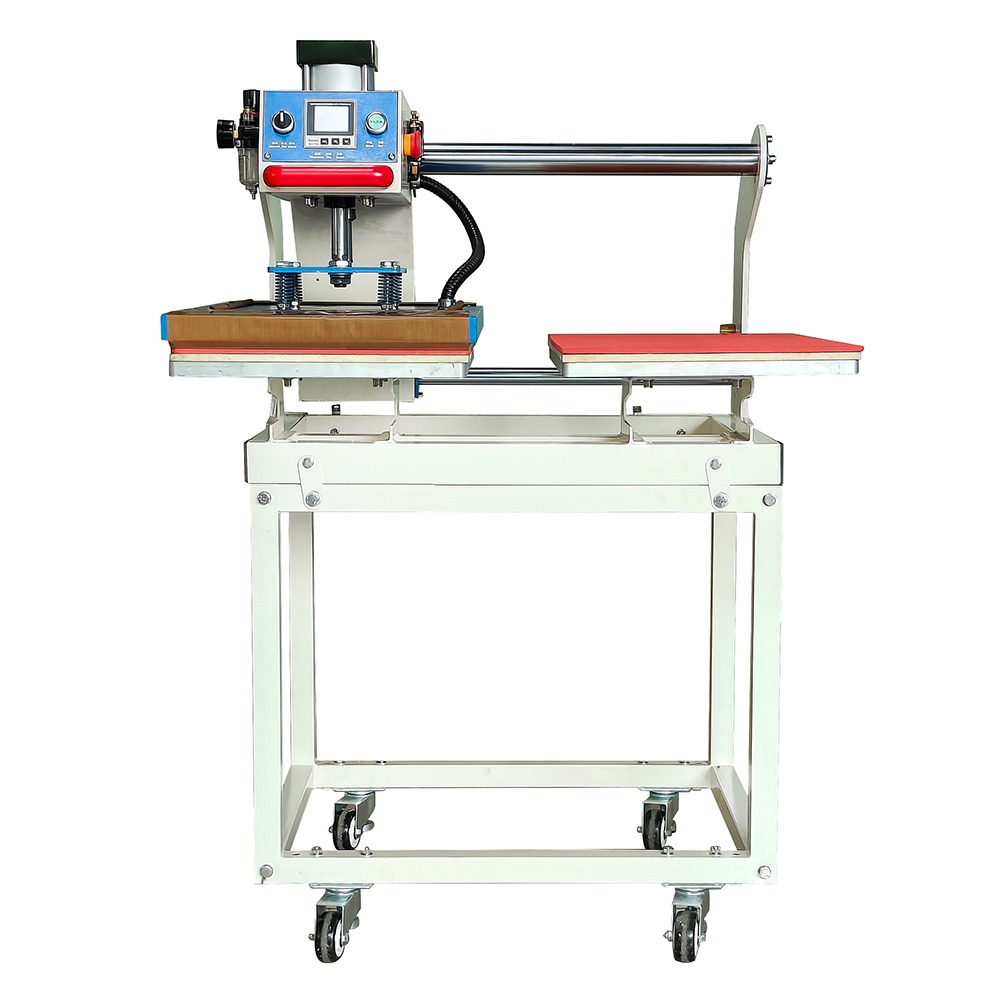

Pneumatic Slide-Up Dual Station T-Shirt Heat Press Machine for High-Output Garment Printing ZS-QT
A sliding-up dual-station heat press for alternating production. The worktable moves upward and transfers between stations to reduce loading and unloading downtime.
- Sliding-up dual-station structure
- Working area: 38 × 38 to 70 × 90 cm
- Temperature: 0–399 °C
- Power: 2.2–5 kW
Request a quote
Sales hotline+86 137 1313 7075
Model configurations
| Parameter | 38 × 38 cm | 40 × 60 cm | 60 × 80 cm | 70 × 90 cm |
|---|---|---|---|---|
| Voltage | 220 / 110 V | 220 / 110 V | 220 / 110 V | 220 / 380 V |
| Power | 2.2 kW | 3.5 kW | 3.8 kW | 5 kW |
| Temperature | 0–399 °C | 0–399 °C | 0–399 °C | 0–399 °C |
| Timer | 0–999 s | 0–999 s | 0–999 s | 0–999 s |
| Working pressure | 0–8 kg/cm2 | 0–8 kg/cm2 | 0–8 kg/cm2 | 0–8 kg/cm2 |
Customization: Standard configurations are shown above. Platen size and voltage can be customized.
Key advantages
Sliding-up dual-station structureAlternating stations support continuous batch production.
Digital temperature and timerTemperature and dwell time are adjustable from 0–399 °C and 0–999 seconds.
Pneumatic pressureA pneumatic cylinder applies stable pressure to the heat platen.
Multiple platen sizesFour platen formats are available for apparel and sheet materials.
Operating components
Control panelPneumatic cylinderSliding-up stationDual-station worktable
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
