Automatic electric

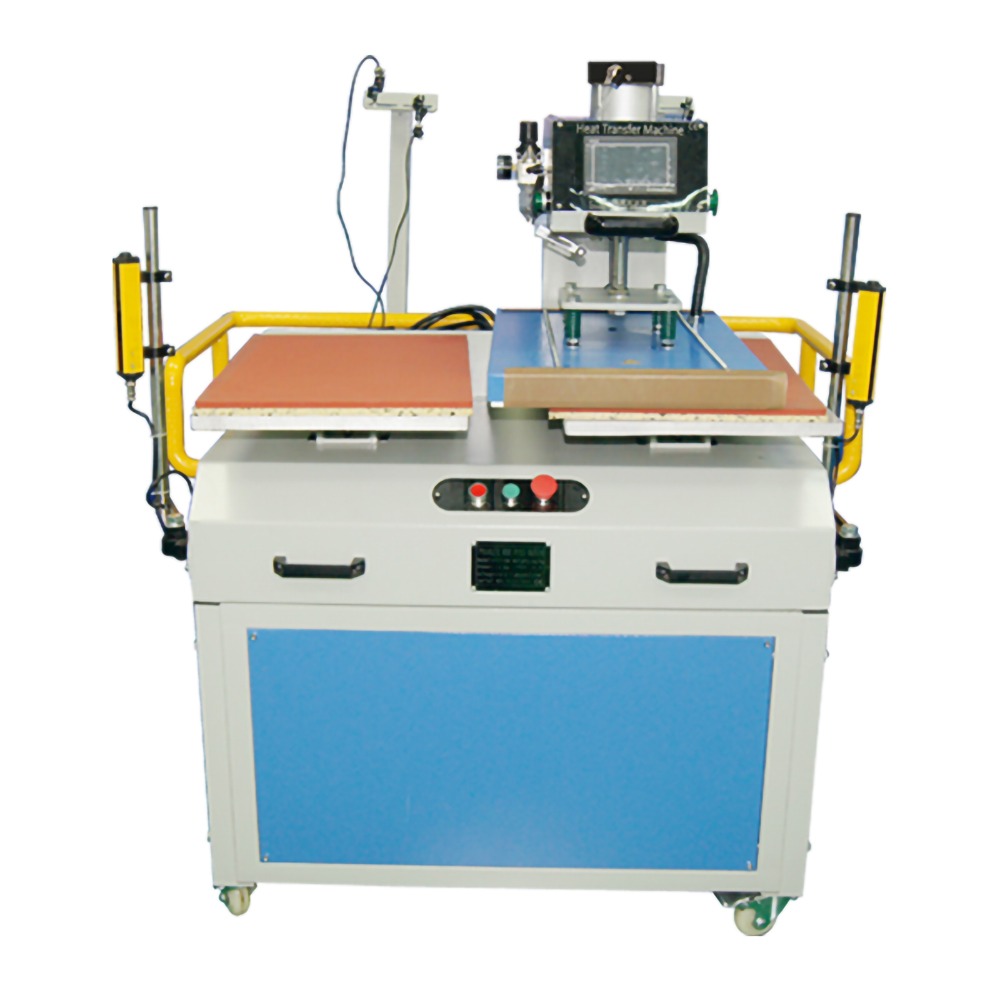

Automatic Electric Dual Station Heat Press Machine with Safety Light Curtain for Apparel Production
A fully automatic electric sliding-up dual-station heat press with PLC programming, recording and alarm functions, safety light curtain, external cylinder, and automatic head travel.
- PLC programming, recording, and alarms
- Safety light curtain
- Automatic left-right head travel
- Dual-station production
Request a quote
Sales hotline+86 137 1313 7075
Model configurations
| Parameter | 38 × 38 cm | 40 × 60 cm | 60 × 80 cm | 70 × 90 cm |
|---|---|---|---|---|
| Voltage | 220 / 110 V | 220 / 110 V | 220 / 110 V | 220 / 380 V |
| Power | 2.2 kW | 3.5 kW | 3.8 kW | 5 kW |
| Timer | 0–999 s | 0–999 s | 0–999 s | 0–999 s |
| Temperature | 0–399 °C | 0–399 °C | 0–399 °C | 0–399 °C |
| Working pressure | 0–8 kg/cm2 | 0–8 kg/cm2 | 0–8 kg/cm2 | 0–8 kg/cm2 |
Customization: Standard configurations are shown above. Platen size and voltage can be customized.
Key advantages
Safety light curtainThe light curtain provides operator protection during machine movement.
PLC control with records and alarmsPLC programming includes operating records and alarm functions.
External pneumatic cylinderThe external cylinder provides strong, consistent pressure.
Automatic head travel and linear guidesThe head moves left and right automatically on imported dual-axis linear guides.
Dual-station worktableTwo stations alternate for apparel and sheet production.
Operating components
PLC control panelSafety light curtainExternal cylinderDual-station worktable
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
