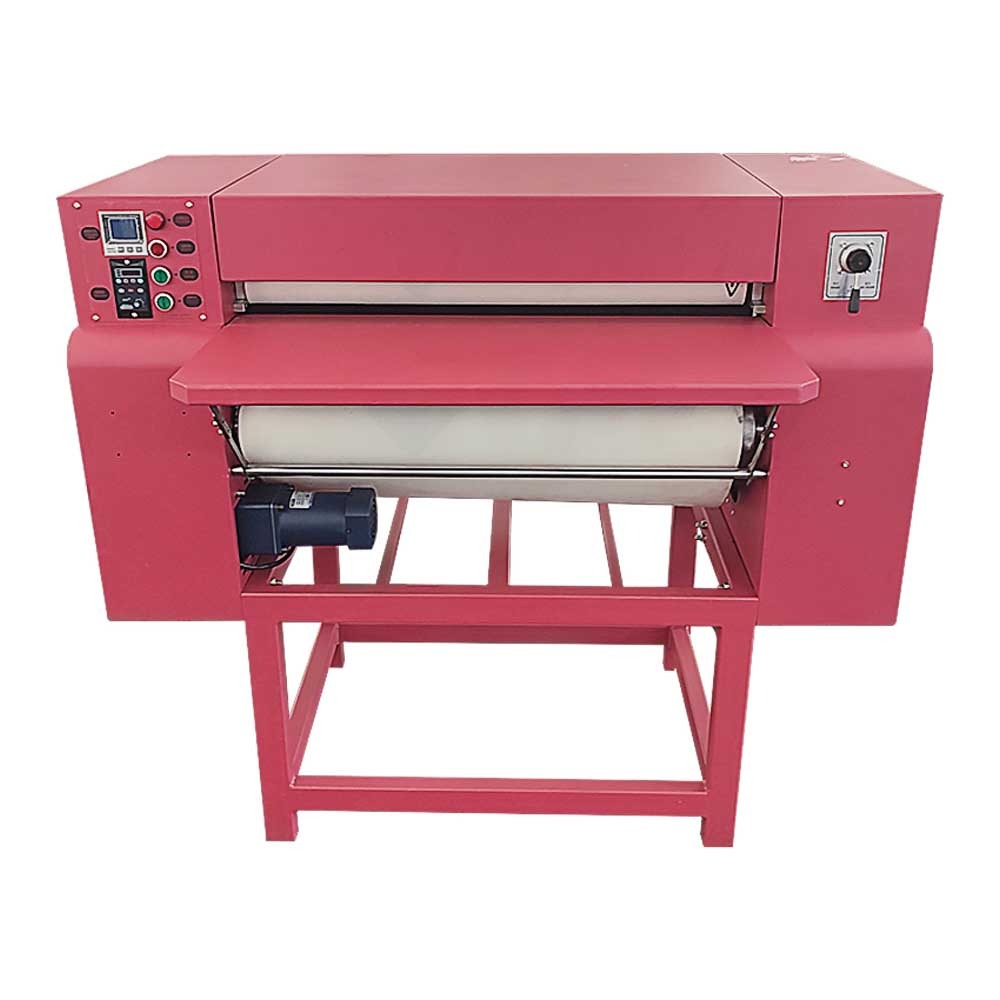

Compact Rotary Sublimation Heat Press Machine for Small-Batch Fabric Transfer ZS-DB
A compact rotary transfer machine for small-batch production, apparel cut pieces, sheet materials, and sample printing. Its small footprint and simple operation make it suitable for workshops and small factories.
- Drum diameter: 200 mm
- Effective heating width: 700 mm
- Power: 6.5 kW
- Speed: 300–1800 rpm
Request a quote
Sales hotline+86 137 1313 7075
Product parameters
| Effective heating area | 200 × 700 mm |
|---|---|
| Heating tubes | 6 × 1000 W |
| Machine power | 6.5 kW |
| Speed | 300–1800 rpm, variable frequency |
| Pressurization | Single-side pneumatic pressurization |
| Heating method | High-temperature heat-transfer oil drum heating |
| Blanket width | 850 × 1865 mm |
| Machine size | 1433 × 958 × 1275 mm |
Customization: Standard specifications are shown above. The configuration can be customized for different materials and working spaces.
Key advantages
Oil-heated drumA high-temperature heat-transfer oil drum provides stable heat for continuous transfer.
Six heating tubesSix 1000 W heating tubes provide reliable heating for compact rotary transfer.
Single-side pneumatic pressureA compact pneumatic system applies pressure to the heating roller.
Variable-frequency speed controlSpeed is adjustable from 300 to 1800 rpm for different materials and processes.
Operating components
Control panelPneumatic pressure deviceHeating tubesVariable-frequency motor
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
