1200mm Mouse Pad Rotary Sublimation Heat Transfer Machine for Continuous Sheet Printing ZS-BE
Home » Products » Rotary Heat Press Machines » 1200mm Mouse Pad Rotary Sublimation Heat Transfer Machine for Continuous Sheet Printing ZS-BE
ZS-BE

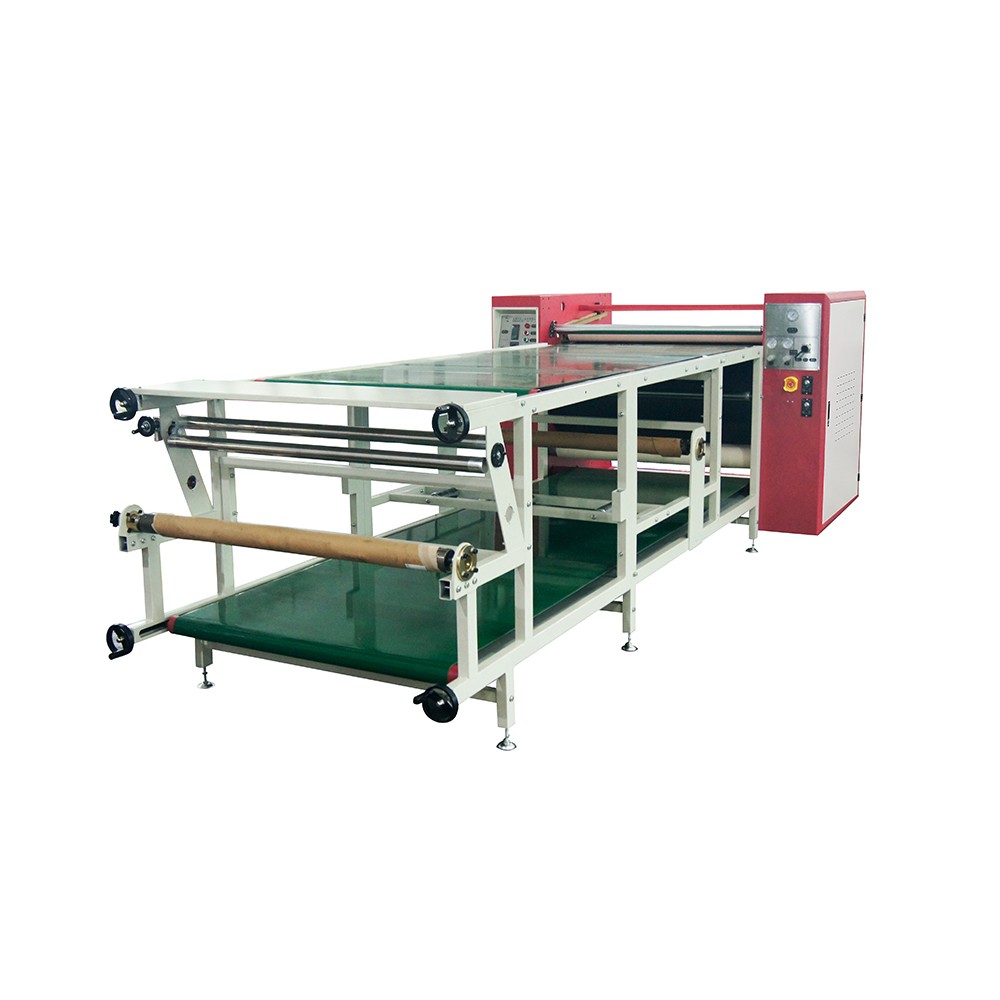

1200mm Mouse Pad Rotary Sublimation Heat Transfer Machine for Continuous Sheet Printing ZS-BE
A rotary heat press designed for continuous transfer printing on mouse pads and other sheet materials. It provides stable feeding, uniform drum temperature and efficient roll-to-roll production.
- Drum diameter: 420 / 610 mm
- Working width: 1200 mm
- Power: 21 / 32 kW
- Speed: 80–220 m/h
Request a quote
Sales hotline+86 137 1313 7075
Technical specifications
| Drum diameter | Working width | Voltage | Power | Temperature | Noise | Speed | Packing size | Installation size | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 420 | 1200 | 110 / 220 / 380 V | 21 kW | 0–400 °C | 30 dB | 80–120 m/h | 2200 × 1100 × 1490 mm | 4850 × 2080 × 1350 mm | 1200 kg |
| 610 | 1200 | 110 / 220 / 380 V | 32 kW | 0–400 °C | 30 dB | 160–220 m/h | 2250 × 1250 × 1700 mm | 4950 × 2100 × 1600 mm | 1600 kg |
Customization: Working width and machine configuration can be customized.
Key advantages
Continuous mouse pad productionRoll-to-roll transfer reduces manual handling and improves output.
Uniform oil-heated drumPrecision drum heating provides consistent color across the sheet.
Controlled material feedingStable tension control keeps thin sheet materials flat and aligned.
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
