CO2 Laser Cutting Machine

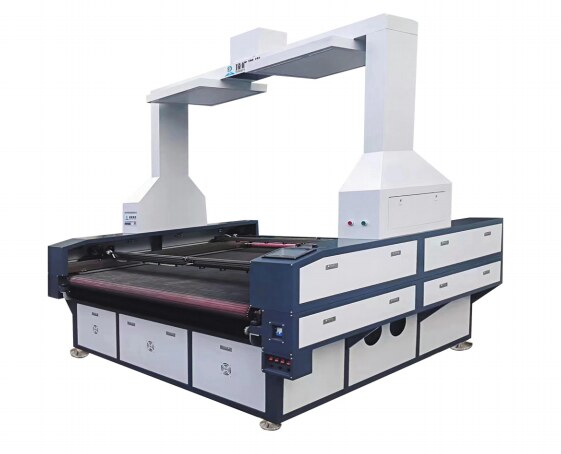

CO2 laser cutting machine DF series with auto-feeding conveyor and vision camera

The DF series is a CO2 laser cutting machine built for continuous cutting of flexible materials. An industrial vision camera reads the printed outline on every piece and positions the cut automatically, while the automatic feeding conveyor moves the material through so production keeps running without stopping for re-alignment.

Laser power from 80W up to 300W, working areas from 1600 x 1000 mm to 2000 x 3000 mm, repeat positioning accuracy of ±0.05 mm and water cooling. Choose stepper or servo transmission depending on the precision and speed you need.

Key Features

Intelligent vision - an industrial camera recognises each printed outline and positions the cut automatically
Automatic identification - no manual alignment, even on distorted or stretched material
Ultra-high precision - repeat positioning accuracy of ±0.05 mm
Fast cutting - cutting speed up to 1000 mm/s, engraving up to 1500 mm/s
Arc-shape cutting - follows curved, deformed and irregular outlines
Automatic feeding - conveyor table for continuous, high-volume production

Configuration Parameters

Model	Working Size (mm)	Laser Power	Gross Power	Cutting / Engraving Speed
DF-1610	1600 x 1000	80-150W	<=3000W	0-1000 / 0-1500 mm/s
DF-1814	1800 x 1400	80-150W	<=3000W	0-1000 / 0-1500 mm/s
DF-1816	1800 x 1600	80-150W	<=3000W	0-1000 / 0-1500 mm/s
DF-1820	1800 x 2000	130-300W	<=5000W	0-1000 / 0-1500 mm/s
DF-1825	1800 x 2500	150-300W	<=5000W	0-1000 / 0-1500 mm/s
DF-1830	1800 x 3000	150-300W	<=5000W	0-1000 / 0-1500 mm/s
DF-1916	1900 x 1600	150-300W	<=5000W	0-1000 / 0-1500 mm/s
DF-1922	1900 x 2200	150-300W	<=5000W	0-1000 / 0-1500 mm/s
DF-1927	1900 x 2700	150-300W	<=5000W	0-1000 / 0-1500 mm/s
DF-2022	2000 x 2200	150-300W	<=5000W	0-1000 / 0-1500 mm/s
DF-2025	2000 x 2500	150-300W	<=5000W	0-1000 / 0-1500 mm/s
DF-2030	2000 x 3000	150-300W	<=5000W	0-1000 / 0-1500 mm/s

Working area, laser power and transmission can be built to your requirements - tell us your material and output target for a custom configuration.

Technical Parameters

Camera brand	Industrial camera
Cooling mode	Water cooling
Laser type	CO2
Operating humidity	5% - 95%
Repeat positioning accuracy	±0.05 mm
Operating temperature	0°C - 45°C
Transmission mode	Stepper / servo motor
Operating voltage	220V / 110V, 50/60 Hz
Supported file formats	DWD, DXF, JPG, AI, TIFF, PLT, CDR, BMP, GIF
File transfer	USB cable to PC, USB flash drive, network cable

Applicable Industries

Cycling wear, sportswear, swimwear, dancewear, printed apparel, home textiles, footwear, lace, lace trimming, handbags, gloves, luggage and bags, car seat covers, leather goods, plush toys and paper products.

Request a Quote

Tell us your material, the printed panel size and how many pieces per hour you need - we will recommend the right model and laser power. Contact us by email or WhatsApp (see details at the top of the page).
